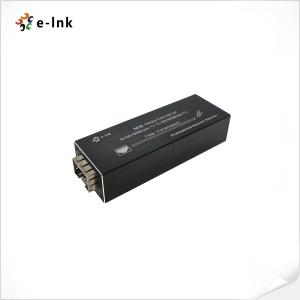

802.3at PoE PD SFP Fiber Media Converter Mini Gigabit 1000Mbps Aluminum Case OEM

  • 1
  • 2

Brand Name : E-link

Model Number : LNK-M3011SFP-PD

Certification : CE,FCC,RoHs

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : Western Union, L/C, T/T, MoneyGram, Paypal

Supply Ability : 2000pcs/per month

Delivery Time : 7 working days

Packaging Details : Fiber Media Converter standard export package

Key words : 802.3at PoE PD Gigabit Media Converter

Data Rate : 10/100/1000Mbps

Input Power : DC 48V~54V or DC 5~15V

PoE Standard : 802.3af/at/bt

Mounting Options : Desktop

Casing : IP40 Aluminum Case

Contact Now

OEM Mini Gigabit 1000Mbps 802.3at PoE PD SFP Fiber Media Converter Aluminum Case

SFP Media Converter Advantages

►IEEE 802.3af/at/bt 48V~54V DC in-line power input
►SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)
►USB-powered for portability, or use 5~15VDC wide range power input
►Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
►Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost

Copper to Fiber Meida Converter Technical Indexes

Max Packet Length: 9K Bytes
Connector: 1 x 10/100/1000BASE-T Ethernet TP RJ45 port
Optical Port: 1 x 100/1000BASE-X SFP (LC) (auto detection)
Standard: IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt 4-pair Power over Ethernet Plus Plus (Type 3)
IEEE 802.3bt 4-pair Power over Ethernet Plus Plus (Type 4)
Input Power: IEEE 802.3af/at/bt PoE 48V-54V DC in-line power or optional DC 5~15V(Type-C) external power adapter(Not included in standard package)
Power Consumption:

DC 48V PoE In: 3.1 watts/10.5BTU

DC 54V PoE In: 3.2watts/10.9BTU
LED Indicators:
PWR: Power Status
TX: LINK100/1000, TP cable rate 100/1000M
FX/ACT: Optical link action /TP cable packet forwarding action
Dimensions (WxDxH): 78 x 27 x 18 mm
Weight: 46g
Operating Temperature: -20°C to 70°C (-4°F to 158°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)

Gigabit Ethernet Media Converter Overview

The LNK-M3011SFP-PD features two kinds of power input system designs (IEEE 802.3af/at/bt 48V~54V DC in-line power and optional 5~15V DC input) incorporated into customer’s network to enhance system reliability and uptime. However, that has to depend on the kind of Ethernet environment that is needed, be it the LNK-M3011SFP-PD operated as a PoE PD media converter or standard Gigabit media converter with optional 5~15V DC input. The Micro Mini Media Converters are excellent solutions for fiber-to-the-laptop applications where you need Gigabit fiber connectivity but local power isn't available.

802.3at PoE PD SFP Fiber Media Converter Mini Gigabit 1000Mbps Aluminum Case OEM

802.3at PoE PD SFP Fiber Media Converter Mini Gigabit 1000Mbps Aluminum Case OEM​

Power Over Ethernet PD Media Converter Ordering Information

Model Description
LNK-M3011SFP-PD Micro Mini 802.3at PoE+ PD 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
SFP Options SFP option. Please select your SFP on our SFP Options Page (Industrial SFP)
SFP module is to be purchased separately
Mounting Options Desktop
Power Options IEEE 802.3af/at/bt 48V~54V DC in-line power
Optional 5~15V DC input
