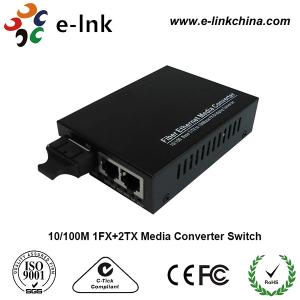

Multi Port Fiber Ethernet Media Converter SC Connector Multimode 2km Distance

Brand Name : E-link

Model Number : LNK-1200

Certification : CE/FCC/Rohs

Place of Origin : Shenzhen, China

MOQ : 1pcs

Payment Terms : T/T, L/C, Western Union, MoneyGram

Delivery Time : 5-8 days

Price : Negotiation

Packaging Details : Standard Export Package

Fiber Connector : 1 x SC

Ethernet Port : 2 x Rj45

Rate : 10 / 100Mbps

Distance : 2km

Fiber Type : Multi Mode

Wavelength : 1310nm

Contact Now

Model: LNK-1200

Overview

LNK-1200 is the fiber switch with 1 fiber port and 2 UTP ports.

The fiber switch makes full use of advanced optic transmission technology to convert Ethernet signal to optic type and transmit signal over long distance.

This kind of media converter can extend the transmission distance to 2 kilometers (multimode) or 120 kilometers (single mode), also achieves the function of Ethernet switches.

It is an economical solution to employ this kind of media converter on networking transmission.

Technical Indexes

Parameter Specifications
Access mode 10/100Mbps
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control
Wavelength 850nm/1310nm/1550nm
Transmission distance

Dual-fiber multi-mode: 2 km;

Dual-fiber single mode: 20/40/60/80/100/120 km;

Single fiber single mode: 20/40/60/80/100 km

Category-5 twisted pairs: 100m
Port

Two RJ45 port: for connecting STP/UTP category-5 twisted pairs

One optical port: Multi-mode, dual fiber: SC or ST (50, 62.5/125μm)

Single mode, dual fiber: SC or ST (9/125μm)

Single mode Single fiber: SC or ST (9/125μm)
Conversion means Store and Forward mode or Cut-Through mode
Buffer space Built in 128Kb RAM for data buffer
Flow control

Full duplex: flow control;

Half duplex: back pressure
BER <19-9
MTBF 100,000 hours
LED indicator POER (power supply); FX LINK/ACT (optical link action); FDX (FX full duplex), TX LINK/ACT (TP cable link/action); TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M)
Power supply External: AC90~264V/DC100~380V input, 5V1A output
Power consumption <40W (the chassis at full load), <2W
Operating temperature -10~55ºC
Operating humidity 5%~90%
Maintaining temperature -40~70ºC
Maintaining humidity 5% ~ 90% non-condensing

Features

  • In conformity to IEEE 802.3 10 Base-T standard. In conformity to IEEE 802.3u 100 Base-TX/FX standard.
  • Support 1k MAC address.
  • Power and link LED indicators.
  • Back pressure flow control for full duplex IEEE 802.3X and half duplex.
  • Automatic identification of MDI/MDI-X cross line.
  • Support max forwarding packet length 1552/ 1536 bytes option.
  • Can be rack mounted in 2U 14 slots rack.
