Compact Industrial 10G Copper-to-SFP+ Media Converter -40-80°C 12-48VDC
Overview
The LNK-IMC10G-SFP+ is a compact, non-PoE industrial 10G Ethernet media converter
designed for reliable copper-to-fiber conversion in harsh environments. Supporting
multi-speed operation from 100Mbps to 10Gbps, it features one RJ45 port with auto
MDI/MDI-X and one 10G SFP+ slot, ensuring high-performance, wire-speed connectivity.
With ultra-low power consumption, 12~48VDC wide-range input, rugged IP40 aluminum
housing, and a wide operating temperature range of -40°C to 80°C, it is ideal for industrial
networks requiring high bandwidth without PoE functionality, such as backbone extensions,
data center links,
and long-distance fiber runs.
Features
Multi-Speed Support — 100M/1G/2.5G/5G/10G RJ45 to 10G SFP+
Energy Efficient — IEEE 802.3az compliant, only 5W max power consumption
Industrial Design — Compact IP40 aluminum case, -40°C to 80°C wide temperature
Flexible Power — 12~48VDC redundant terminal block input
Stable Performance — 20Gbps switching fabric, jumbo frame support
Versatile Installation — DIN-Rail or wall-mount options included
Technical Indexes
| Ethernet |
| Standards: | IEEE 802.3u 100BASE-TX |
| IEEE 802.3ab 1000BASE-T |
| IEEE 802.3bz 2.5G/5GBASE-T |
| IEEE 802.3an 10GBASE-T |
| IEEE 802.3ae 10Gbps Ethernet |
| IEEE 802.3x full-duplex flow control |
| IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Forward & Filtering Rate: | 100Mbps |
| 1000Mbps |
| 2.5Gbps |
| 5Gbps |
| 10Gbps |
| Network Cables: | 10G/5G/2.5G/1G/100M BASE-T: 10G – Cat 6A/7 5G – Cat 6/6A/7 1G/2.5G – Cat 5e/6/6A/7 100M – Cat 5/5e/6/6A/7 Cat 5/5e/6/6A/7 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 10GBASE-LR/SR/BX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m 9/125μm single-mode fiber optic cable, up to 80km |
| Processing Type: | Store-and-Forward |
| Fabric: | 20Gbps |
| Jumbo Frame: | 16K |
| Address Table: | 9K entries, automatic source address learning and aging |
| Interface |
| Connector: | 1 x RJ45 |
| Optical Port: | 1 x SFP+ |
| Environmental |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical |
| Input Power: | 12~48VDC, Redundant Power (4-pin Terminal Block) |
| Power Consumption: | 5W Max |
| Protection: |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| DIP Switch |
| 4-digit DIP switch function | DIP | Function | Settings |
| SW 1 | Reserved | ON - Reserved | OFF - Reserved |
| SW 2 | Reserved | ON - Reserved | OFF - Reserved |
| SW 3 | Reserved | ON - Reserved | OFF - Reserved |
| SW 4 | Reserved | ON - Reserved | OFF - Reserved |
| Note: DIP Switch’s function can be customized based on client’s requirements. |
| LED Indicators: |
| PWR: | Power Status |
| L/A: | Link/Activity at Ethernet Port |
| TP: | Ethernet Status |
| FX: | SFP+ Fiber Port Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail/Wall-mount |
| Regulatory Approvals |
| ISO9001, CE, RoHS, FCC |
| EN55022:2010+AC: 2011, Class A |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 |
| EN 61000-3-3: 2013 |
| EN55024:2010 |
| IEC 61000-4-2: 2008 (ESD) |
| IEC 61000-4-3: 2010 (RS) |
| IEC 61000-4-4: 2012 (EFT) |
| IEC 61000-4-5: 2014 (Surge) |
| IEC 61000-4-6: 2013 (CS) |
| IEC 61000-4-8: 2009 (PFMF) |
Ordering Information
| Model | Description |
| LNK-IMC10G-SFP+ | Mini Industrial 10G/5G/2.5G/1G/100M Copper to 10GBASE-X SFP+ Media Converter |
| SFP Options | ► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP). |
| ► SFP+ module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block |
| ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| ► Power Supply is to be purchased separately. |

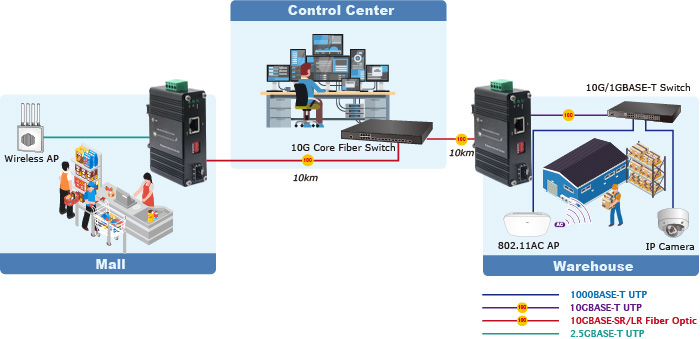

Application
