Industrial L2+ Rackmount 24-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch

Brand Name : E-link

Model Number : ETH-DIMC2424M

Certification : CE, RoHS, FCC, ISO9001

Place of Origin : China

MOQ : 1 pcs

Price : To be negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card

Supply Ability : 1000pcs/month

Delivery Time : 5-12working days

Packaging Details : Standard Export Package

Forward & Filtering Rate : 14,880pps (10Mbps)/148,800pps (100Mbps)/1,488,000pps (1000Mbps)

Connector : 24 x RJ45

Optical Port : 4 x 1000Base-X SFP

Operating Temperature : -40°C to 80°C (-40°F to 176°F)

Input Power : 12~48VDC, Redundant Power (6-pin Terminal Block)

Power Consumption : 15W Max.

Dimensions (WxDxH) : 440mm x 300mm x 45mm

Weight : 3.5Kg

Contact Now

Industrial L2+ Rackmount 24-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch
Industrial Ethernet Switch Advantages

► Support 24x10/100/1000Base-T + 4x1000Base-X SFP

► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX

► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all

► 10K Bytes Jumbo Frame

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► IP40 Aluminum Case

► Supports 1U 19” Rackmount installation

Industrial Ethernet Switch Technical Indexes

Packet Buffer Memory: 12M bits
Processing Type: Store-and-Forward
Backplane bandwidth 110Gbps
Address Table Size: 8K MAC Addresses
Interface
RS485: 1 x RS485 (Optional)
USB-C: 1 x USB-C (for Management)
RS485 Serial Interface (Optional)
Physical interface Industrial standard 3-pin screw terminal
Data type 1Ch RS485 Bi-Direction
RS-485 signals Data+, Data-, GND
Serial port line distance (copper) 1000 meters
Baud rate 0 ~ 800kbps
Environmental
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Power Input Overload: Automatic Resettable
Reverse Polarity: Present
LED Indicators:
PWR: Power Status
Ethernet (Per Port): Link/Activity
Fiber: Gigabit SFP Port: F25~F28

Industrial Ethernet Switch Overview
ETH-IMC2424M series is the L2+ managed rackmount 24-port 10/100/1000Base-T + 4-port 1000Base-X SFP hardened Ethernet switch. The switch has 24 TP ports and 4 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; the 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. Due to its reliable design and ease of use, the product stands as an excellent option for integrating networks that comprise network devices like IP cameras and wireless access points across remote locations.
Industrial L2+ Rackmount 24-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch
Ordering Information

Model Description
ETH-IMC2424M Industrial L2+ Rackmount 24-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch
SFP Options ► SFP option. Please select your SFP on our SFP Options Page
► SFP module is to be purchased separately.
Mounting Options ► Rackmount Installation
Power Options ► Industrial Power Supply. Open Wire for Terminal Block.
► Power Supply is to be purchased separately.

China Industrial L2+ Rackmount 24-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch factory

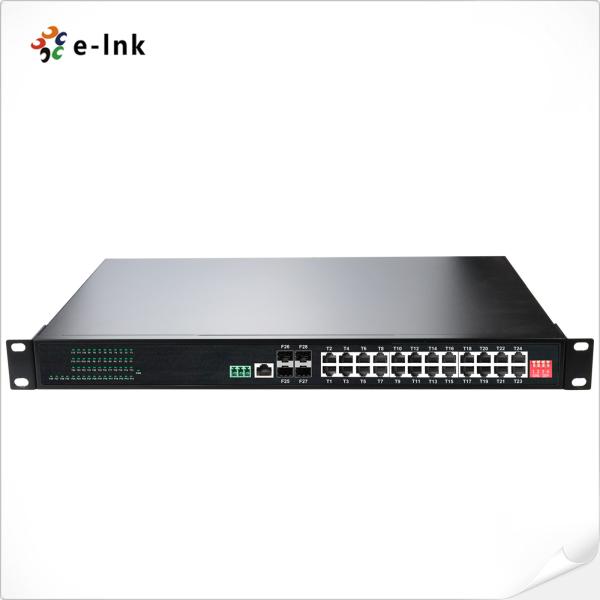

Industrial L2+ Rackmount 24-Port 10/100/1000T + 4-Port 1000X SFP Managed Ethernet Switch Images
