Mini Industrial 100/1000BASE-X SFP to 10/100/1000BASE-T 30W PoE+ Media Converter

Name: Mini Industrial 1001000BASEX SFP to 101001000BASET 30W PoE Media Converter
Brand: E-link
Price: 1 USD

China Mini Industrial 100/1000BASE-X SFP to 10/100/1000BASE-T 30W PoE+ Media Converter factory

Brand Name : E-link

Model Number : The LNK-IMC3012P-SFP

Certification : CE, RoHS, FCC, ISO9001

Place of Origin : China

MOQ : 1 pcs

Price : To be negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal, Credit Card

Supply Ability : 1000pcs/month

Delivery Time : 5-12working days

Packaging Details : Standard Export Package

Connector : 1 x RJ45

Optical Port : 1 x SFP 1000Base-X or 100Base-FX (auto detection)

Operating Temperature : -40°C to 75°C (-40°F to 167°F)

Input Power : 12~48VDC, 4-pin terminal block

Power Consumption : 36W Max

Dimensions (WxDxH) : 95 x 70 x 30 mm

Weight : 0.25Kg

Contact Now

Mini Industrial 100/1000BASE-X SFP to 10/100/1000BASE-T 30W PoE+ Media Converter

Industrial Ethernet Switch Advantages

► 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)

► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant

► Supports Full/Half-duplex, Auto-negotiation

► Supports DIN-Rail & Wall-mount installation

Industrial Ethernet Switch Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2048K MAC Addresses
Electrical and Mechanical
Output Power	48VDC
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
POE:	PoE Status
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs

Industrial Ethernet Switch Overview

LNK-IMC3012P-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard.This is a high-quality product with an operating temperature range of -40°C to +75°C. LNK-IMC3012P-SFP supports 10/100/1000Base-T with 30W PoE+ and 100/1000Base-X SFP Port. The Ethernet port is compatible with both half-duplex and full-duplex operation modes. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.

Ordering Information

Model	Description
LNK-IMC3012P-SFP	Hardened 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter with PoE+
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.

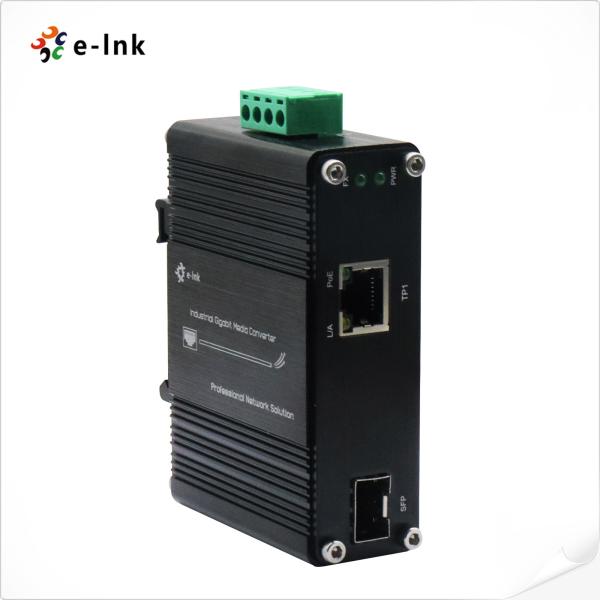

Mini Industrial 100/1000BASE-X SFP to 10/100/1000BASE-T 30W PoE+ Media Converter Images
