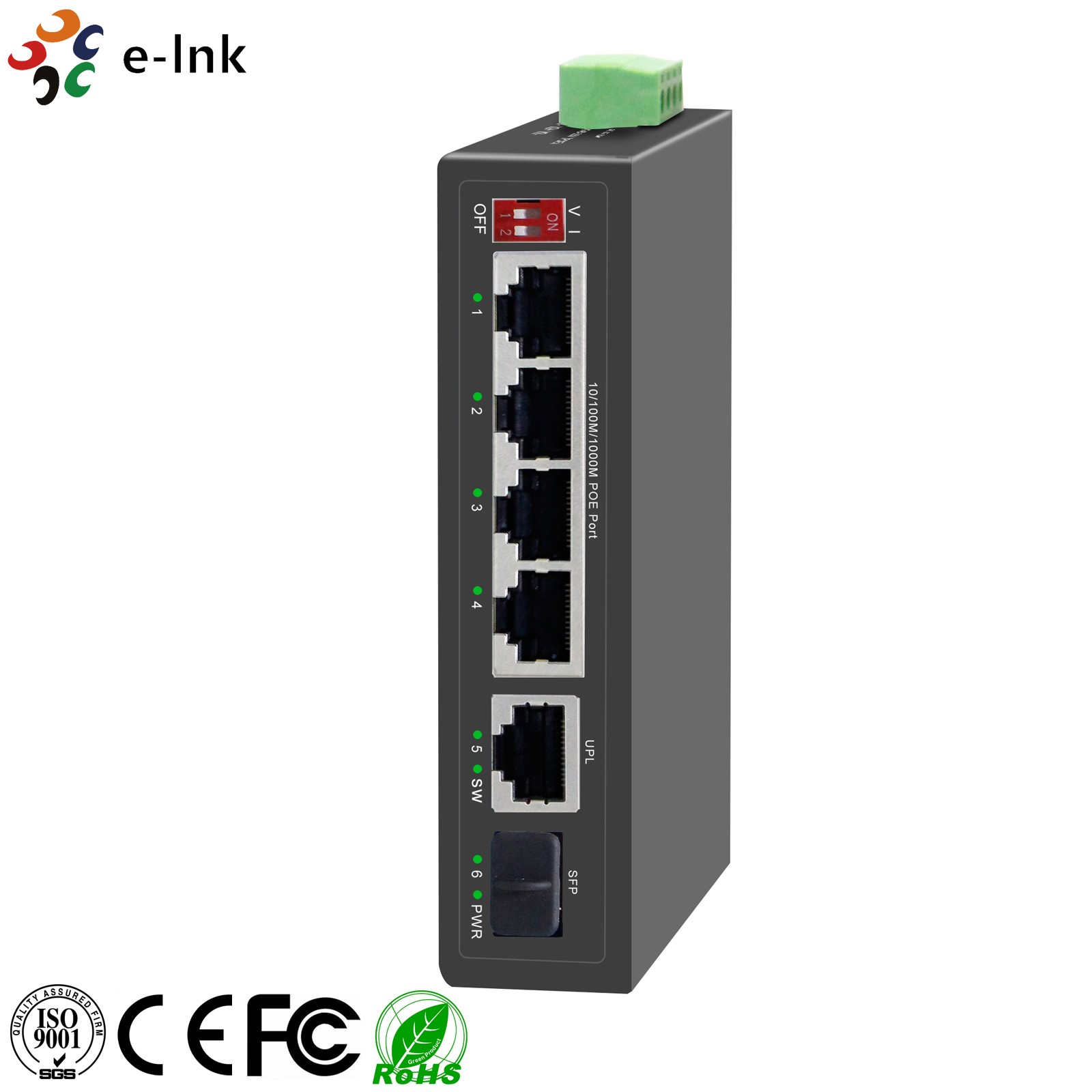

Industrial Ethernet PoE Switch's Product Description:
LNK-GYT411GP-SFP Series is 250m Industrial PoE Switch with 4-port 10/100/1000Base-TX, 1-port 1000BASE-X SFP and 1-port 1000BASE-T uplink. This Industrial Ethernet PoE Switch provides 4 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. This Industrial Ethernet PoE Switch fully combines the characteristics of security surveillance, provides fast packet forwarding ability and abundant backplane bandwidth, which ensures clear image and fluent transmission. Inserted static, surge protection circuit can improve product stability. This Industrial Ethernet PoE Switch supports one key VLAN mode, can achieve VLAN, QoS priority after configuration, control the Net storm, protect the information security, prevent the viral transmission and Ethernet attack, fully satisfy the Ethernet video security surveillance system and Ethernet project needs.
Industrial Ethernet PoE Switch's Features:
► Transmission distance 250m, it can be flexible installation for wireless AP and surveillance project
► Speed of 10Mbps at 250meter when connect IP cameras
► 4*10/100/1000Base-TX POE port and 1 Uplink 1000M Ethernet slot+1 Uplink Gigabit SFP
► 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Compatible with both IEEE802.3at(30W) and IEEE802.3af (15.4W)
► Supports 802.3x Flow control
► Port Lightning Protection: General Mode 6KV
► Redundant Power Inputs
► Supports Wall-mount and DIN-Rail installation
► -40°C to 80°C (-40°F to 176°F) operating temperature
Industrial Ethernet PoE Switch's Technical Parameters:
| Network Protocols | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.1D Spanning Tree Protocol |
| PoE Specification | PoE Standard: Supports both IEEE802.3af and IEEE802.3at |
| | Single PoE Port Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) |
| | PoE port Auto detect AF/AT devices |
| | PoE Port Output Voltage: DC48V |
| | Power Pin Assignment:1/2+;3/6- |
| Network Media | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
Industrial Ethernet PoE Switch's Support and Services:
Industrial Ethernet PoE Switch technical support and services include:
- 24/7 online technical support
- Free installation services
- Onsite technical support
- Regular system updates and upgrades
- Training and education
Industrial Ethernet PoE Switch's Packing and Shipping:
Industrial Ethernet PoE Switch is packaged for shipping in a strong, corrugated box designed to ensure safe transport and handling. The interior is filled with protective foam inserts to help cushion the product against shock and vibration, while the exterior of the box is clearly labeled with product and shipping information.
Industrial Ethernet PoE Switch's Ordering Information:
| Model | Description |
| LNK-GYT411GP-SFP | 4-Port 10/100/1000Base-T PoE(up to 250m) + 1-Port 1000Base-T + 1-Port 1000Base-X SFP Ethernet Switch |
| Mounting Options | ► Default DIN-Rail Bracket installed |
| Power Options | ►120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| | ► Power Supply is to be purchased separately. |
