Industrial Ethernet Media Converter's Product Description:

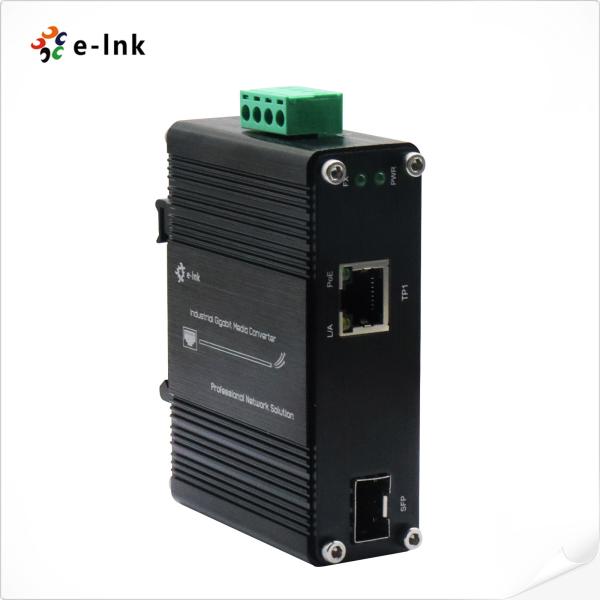

LNK-IMC3012P-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. This Industrial Ethernet Media Converter supports high power PoE (Power over Ethernet) which complies with IEEE802.3at standard. This Industrial Ethernet Media Converter is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC3012P-SFP supports 10/100/1000Base-T with 30W PoE+ and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
Industrial Ethernet Media Converter's Features:
LNK-IMC3012P-SFP Series present the following characteristics:
► 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)
► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
► Supports Full/Half-duplex, Auto-negotiation
► Supports DIN-Rail & Wall-mount installation
Industrial Ethernet Media Converter's Technical Parameters:
| Standards: | IEEE802.3 10Base-T |
| | IEEE802.3u 100Base-TX/FX |
| | IEEE802.3ab 1000Base-T |
| | IEEE802.3z 1000Base-X |
| | IEEE 802.3az Energy Efficient Ethernet (EEE) |
| | IEEE802.3af Power over Ethernet |
| | IEEE802.3at Power over Ethernet |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| | 148,800pps (100Mbps) |
| | 1,488,000pps (1000Mbps) |
| Packet Buffer Memory: | 1 Mbit |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2048K MAC Addresses |
| Output Power | 48VDC |
| Power Consumption: | 36W Max. |
| Weight: | 0.25Kg |
Industrial Ethernet Media Converter's Applications:
Industrial Ethernet Media Converter's Support and Services:
Industrial Ethernet Media Converter technical support and service includes:
- 24/7 technical support
- On-site troubleshooting and repairs
- Remote technical support
- Firmware updates and upgrades
- Hardware replacement
- Maintenance and preventive care
- Customized system integration and optimization services
Industrial Ethernet Media Converter’s Packing and Shipping:
Industrial Ethernet Media Converter Packaging and Shipping:
- Each Industrial Ethernet Media Converter is packaged individually in a cardboard box with a foam insert to protect the switch during shipping.
- The box is then placed in a larger, outer box with additional packing materials to ensure the converter remains undamaged during transit.
- The box is then sealed and shipped to the customer via a reliable shipping carrier.
Industrial Ethernet Media Converter's Ordering Information:
| Model | Description |
| LNK-IMC3012P-SFP | Hardened 10/1001000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter with PoE+ |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| | ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
| Power Options | ► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block |
| | ► Power Supply is to be purchased separately. |
