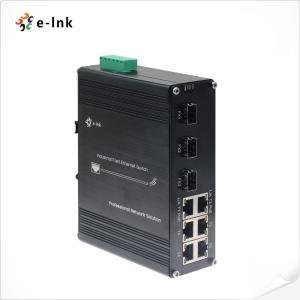

Industrial PoE Ethernet Switch 6 x PoE + 3 x SFP Fast Ethernet

Brand Name : E-link

Model Number : LNK-IMC306P-SFP

Certification : CE/FCC/Rohs

Place of Origin : China

MOQ : 1 pc

Price : Please contact seller

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 1000pcs/Month

Delivery Time : 5-8 days

Packaging Details : 1 piece in 1 box

Port : 6-port 10/100M RJ45 + 3-port 100M SFP

PoE Standard : 6 x IEEE 802.3af /IEEE 802.3at PoE

Redundant power input : DC 48-57V

Installation mode : DIN Rail

Contact Now

Industrial PoE Ethernet Switch 6 x PoE + 3 x SFP Fast Ethernet​

Overview

LNK-IMC306P Series is 6 ports 10/100Base-TX + 3 port 100Base-FX Hardened PoE switch. The Switch provides 6 port PoE+ function for kinds of Powered Devices to receive power as well as data over the RJ-45 cable. The 100Base-FX supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.

Features

  • 6 10/100Base-TX + 3 100Base-FX
  • 10/100Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
  • Supports IEEE 802.3af/at PoE+ (30W per port)
  • SFP, SC, FC, ST Optional
  • Supports 802.3x Flow control
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Redundant Power Inputs
  • Supports DIN-Rail mounting installation
  • -40°C to 80°C (-40°F to 176°F) operating temperature

Application

Industrial PoE Ethernet Switch 6 x PoE + 3 x SFP Fast Ethernet

Technical Indexes

Interface
Connector: 6 x RJ45
Optical Port: 3 x 100Base-FX (SFP, SC, FC, ST Optional)
Electrical and Mechanical
Input Power: 48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption: 180W Max. (PoE in use)
5W Max. (PoE not in use)
Standard: IEEE802.3af/at
PoE:
Port: RJ45 Port 1 ~ Port 6
Max. Power per Port: 30W Max per port (Alternative B Mode)
Protection:
Power Input Overload: Automatic Resettable
Reverse Polarity: Present
Hardware:
Weight: 0.6Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail

Ordering Information

Model Description
LNK-IMC306P Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM
LNK-IMC306P-20 Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC306PS-20 Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC306PF-20 Industrial Ethernet Switch: 6-Port 10/100Base-TX (6-port PoE+) + 3-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC306P-SFP Industrial 6-port 10/100BASE-T (6-port PoE+) + 3-port 100BASE SFP Ethernet Switch
SFP Options ► SFP option. Please select your SFP on our SFP Options Page
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed.
Power Options ► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
► Power Supply is to be purchased separately.
