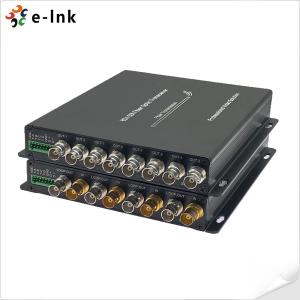

4 Channel 3G-SDI Fiber Extender With Backward RS485 4Ch Tally 20KM FC Connector

  • 1
  • 2
  • 3

Brand Name : E-link

Model Number : LNK-3GSDI-4V1D4T

Certification : CE,FCC,RoHs

Place of Origin : China

MOQ : 1 pair

Price : Negotiation

Payment Terms : Western Union, L/C, T/T, MoneyGram

Supply Ability : 2000 pairs/per month

Delivery Time : 7 working days

Packaging Details : 4-Channel 3G-SDI Fiber Extender Standard Export Package

Product Name : 4-Channel 3G-SDI Fiber Transmitter Receiver

Data Type : 1Ch RS485 & 4Ch Tally

Video Input : 4 x 3G/HD/SD-SDI on BNC

Supported Resolution : 1080P/1080i/720p

Fiber Output : 1 x FC/ST/SC/LC optical fiber

Fiber Type : Single Mode Simplex Fiber

Power Input : 12VDC 1A

Working Temperature : -20℃~+70℃

Warranty : 3 Years

Contact Now

4-Channel 3G-SDI Fiber Extender with Backward RS485 & 4Ch Tally 20KM FC Connector

4Ch 3G SDI Video Over Fiber Extender Advantages

► 4 channel 3G-SDI video transmission over optic fiber

► Directly compatible with HD-SDI camera systems

► SLong transmission capability at least 20 km (40~80km Optional)

► Support 1-Channel RS485 and 4-Channels Tally

4-Channels 3G SDI Fiber Transmitter Receiver Technical Indexes

SDI Input

SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom

270Mbit/s - 1.48Gbit/s – 3Gbit/s

Input number: 4

Reflection loss: >15DB

Equilibrium: 0-150m @3Gb/s

Connector: BNC

Optics

Channel: 1

Type: single-mode

Transmission distance: 20km (Other distance Optional)

Reflection loss: > 15dB

Dithering: < 0.2UI

Connector: FC/UPC (SC, LC, ST optional)

SDI Output

Output number:4

Signal level: 800mV nominal

Rise/fall time: 200ps indication

Overshoot: < 10% amplitude

Reflection loss: >15dB

Dithering: < 0.2UI

Connector: 75Ω BNC

Data

1Ch RS-485 (full/half duplex) and support NRZ, RZI and Manchester

Max. 57600bps for RS485

4Ch Tally: A, B , C, D

SDI video format supports

625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94;

1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94;

3G-SDI Optical Fiber Transceiver

1. Tally Connections

T-A

T-B

T-C

T-D

GND

LED Type

SDI-A

SDI-B

SDI-C

SDI-D

GND

Receiver TALLY Signal Input Connection: (LED load type is only suitable for OC derive LED - driver)

A

B

C

D

VDD

LED Type

SDI-A

SDI-B

SDI-C

SDI-D

2. RS485 Connections

GND

D+

D-

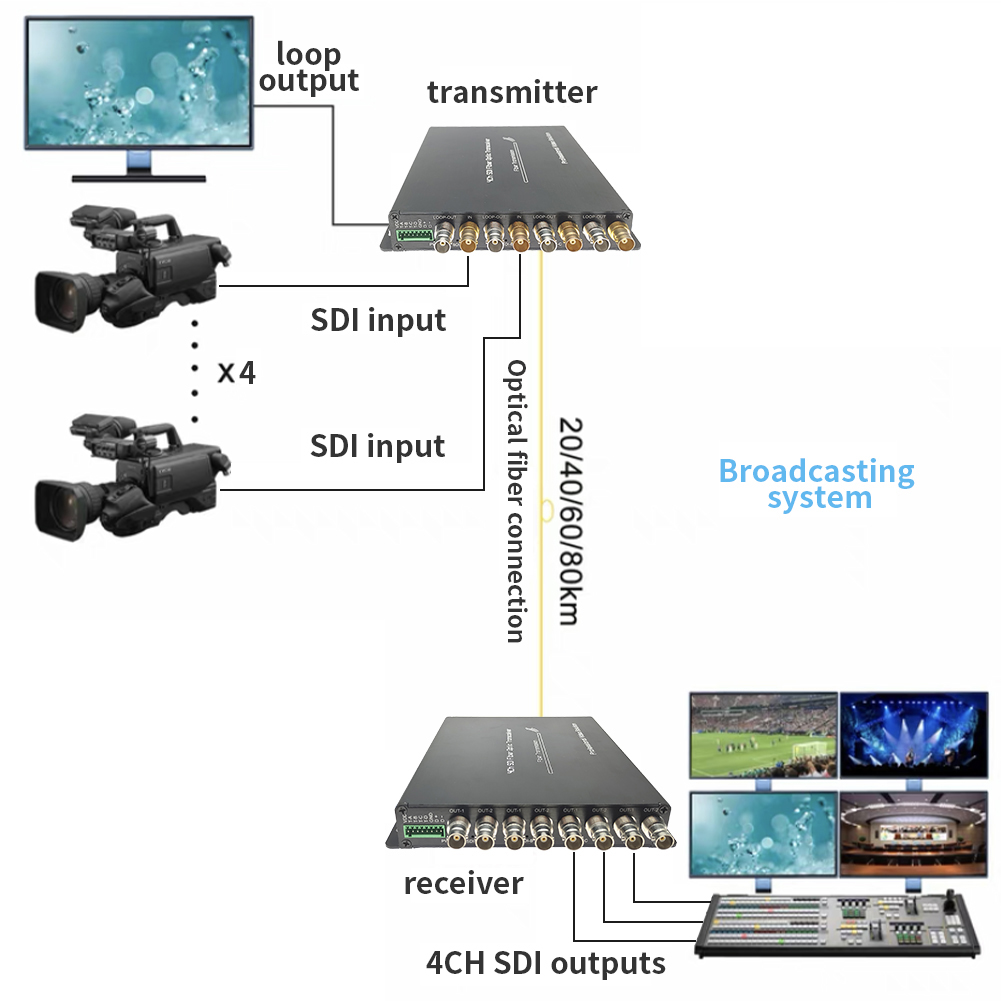

4 Channel 3G-SDI Fiber Extender With Backward RS485 4Ch Tally 20KM FC Connector

4 Channel 3G-SDI Fiber Extender With Backward RS485 4Ch Tally 20KM FC Connector

4 Channel 3G-SDI Fiber Extender With Backward RS485 4Ch Tally 20KM FC Connector

4 Channels 3G-SDI Over Fiber Transmitter Receiver Ordering Information

Model

Description

LNK-HDSDI-4V1D4T

4-Ch HD-SDI Video with Loop output + 1Ch backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-3GSDI-4V1D4T

4-Ch 3G-SDI Video with Loop output + backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs
