Wholesale 12G SDI Video Over Fiber Extender With Tally RS485 And Loop Out SMF LC 20KM

Name: Wholesale 12G SDI Video Over Fiber Extender With Tally RS485 And Loop Out SMF LC 20KM
Brand: E-link
Price: 1 USD

China Wholesale 12G SDI Video Over Fiber Extender With Tally RS485 And Loop Out SMF LC 20KM factory

Brand Name : E-link

Model Number : LNK-M12G-1V1T1D-20

Certification : CE,FCC,RoHs

Place of Origin : China

MOQ : 1 pair

Price : Negotiation

Payment Terms : Western Union, L/C, T/T, MoneyGram

Supply Ability : 2000 pairs/per month

Delivery Time : 7 working days

Packaging Details : 12G SDI Fiber Transmitter Receiver Standard Export Package

Product Name : 12G SDI Fiber Transmitter Receiver

Supported Resolution : HDTV 4Kx2K, 1080P, 1080I, 720P

SDI Input : 1 x 12G SDI on BNC

SDI Output : 1 x 12G SDI loop-out on BNC

Data type : Backward Tally & RS485

Resolution Range : 3840*2160 60Hz

Video Distance : Up to 20KM

Dimensions (LxWxH) : 80 x 40 x 20 (mm)

Input/Output Cable Specification : ≤70m 12G SDI Belden 1694A

Warranty : 3 Years

Contact Now

12G SDI Video Over Fiber Extender With Tally RS485 and Loop Out SMF LC 20KM

12G SDI Fiber Extender Advantages
► Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD)
► Directly compatible with 12G/6G/3G-SDI camera systems
► Fiber optic WDM/CWDM/DWDM technique
► Long transmission capability at least 10 km (6.2miles), up to 80 km
► Supports Tally and Backward RS485

12G SDI Video Over Fiber Transmitter Receiver Application
► UHDTV/4K/8K/HDTV/SDTV Video
► Digital Video Processing and Editing
► SMPTE-Compatible Serial Digital Interface
► Live events broadcast over fiber
► High performance(error-free) surveillance networks in Army or security
► Intelligent Traffic Monitoring System
► Industrial monitoring (Electricity, Chemistry, Steel, Oil, Railway & etc)
► Military Monitoring (Warehouse, Border, Guards,etc)
► Stadium (For LIVE HD video, audio transmission)
► Military Monitoring (Warehouse, Border, Guards, etc)

3G/6G/12G-SDI Fiber Extender Technical Indexes

Formats	Supports ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) And ST-259(SD)
Compatible	Compatible with DVB-ASI and AES10 (MADI)
Input	1 x 12G-SDI on BNC
Output	1 x LC optical fiber
Output	1 x 12G-SDI loop-out on BNC
Supported Resolution	HDTV 4K*2K, 1080P, 1080I, 720P
Resolution range	3840*2160@60Hz
Input cable specification	≤70m@12G SDI Belden 1694A
Output cable specification	≤70m@12G SDI Belden 1694A
Data type	Backward Tally
Data type	Backward RS485
Optical transmission bandwidth	270MHz～12GHz
Power	5-15 VDC
Power Consumption	2 W (Max.)
Dimensions (LxWxH)	80 x 40 x 20 (mm)
Storage Temperature	-40℃～80℃
Operating Temperature	-40℃～85℃

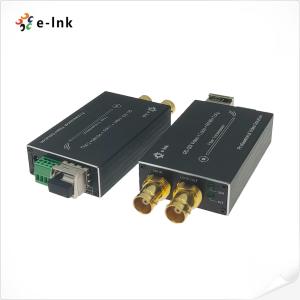

12G SDI Micro Optical Extender Overview
LNK-M12G-1V1T1D Series Mini-type 12G-SDI Fiber Converter supports 1Ch 12G Video (audio embedded), 1Ch Tally signal and 1Ch Backward RS485 transmitted via fiber optical cable, and monitor the signal locally over a 12G loop output. E-link 12G Video over Fiber Converters includes one transmitter and one receiver for HDTV 4K*2K(3840*2160@60Hz), 1080P,1080I, 720P.
Wholesale 12G SDI Video Over Fiber Extender With Tally RS485 And Loop Out SMF LC 20KM

12G-SDI Fiber Converter Ordering Information

Model	Description
LNK-M12G-1V1T1D-20	Mini-type 12G-SDI to Fiber Converter with Tally, Reverse RS485 and loop out, SMF, LC Fiber Connector 20KM, including Transmitter and Receiver, used by pairs
