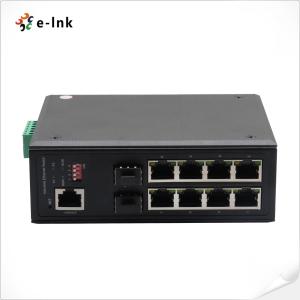

Managed Industrial 8-port 10 100 1000T To 2-port 100 1000BASE-X SFP Ethernet Switch
8-Port Gigabit Ethernet Switch Advantages
► 8x10/100/1000Base-TX RJ45 ports, 2x100/1000Base-X SFP ports
► 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
► Provide SC/FC/ST/LC fiber port (optional), support single/dual fiber transmission
► Electric 4KV surge protection, easy to use in outdoor environment
► Power input polarity protection design, no worry about wrong operation
Managed Fiber Network Switch Technical Indexes
| RJ45 port and speed | 8x10/100/1000Base-TX |
| Fiber port and speed | 2x1000Base-FX SFP (Dual Mode, Auto Detection) |
| Packet buffer | 4Mbits |
| Maximum packet length | Up to 1532Bytes |
| MAC address table | 8K |
| Transmission mode | Store and Forward(full/half duplex mode) |
| Exchange property | Delay time: < 7μs
Backplane bandwidth: 1Gbps
Packet forwarding rate: 148810 (64Byte) |
| Power access mode | Phoenix terminal, DC seat |
| Redundant power input | DC 9-56V / DC 5V |
| Protection grade | IP40 aluminum case |
| Cooling mode | Natural cooling, no fan design |
| Dimensions | 138mm x 106mm x 41mm (L x W x H) |
| Installation mode | DIN trail/wall-mountable |
| Weight | 600g |
| Operating Temperature | -40℃~80℃ |
| Operating Humidity | 5%~90% non-condensing |
| Storage Temperature | -40℃~80℃ |
Din Rail 8-port RJ45 To 2-port SFP Fiber Ethernet Switch Overview
LNK-GYM7208G-SFP Serie is a new generation industrial Managed switch with 8-Port 10/100/1000Base-TX and 2-Port 100/1000Base-X SFP that provide stable and reliable Ethernet transmission offered by E-link, with high quality design and reliability. It is positioning in the broadband network intervention market, to offer and realize Ethernet data exchange, convergence and long-distance optical transmission with efficient bandwidth and reliable fiber optic network solutions for users.
Copper to Fiber Network Switch Ordering Information
| Model | Description |
| LNK-GYM7208G-SFP | Managed 8-Port 10/100/1000Base-T + 2-Port 100/1000Base-X SFP Ethernet Switch |
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP). |
| ► SFP module is to be purchased separately. |
| Mounting Options | ► Default DIN-Rail Bracket installed, Wall Mount Bracket is included. |
| Power Options | ►24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block. |
| ► Power Supply is to be purchased separately. |
