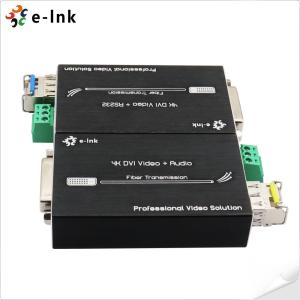

OEM Mini 4K 60HZ DVI Fiber Optic Extender With RS232 Data LC Connector Up To 80KM

  • 1
  • 2

Brand Name : E-link

Model Number : LNK-MDR4K

Certification : CE,FCC,RoHs

Place of Origin : China

MOQ : 1 pair

Price : Negotiation

Payment Terms : Western Union, L/C, T/T, MoneyGram

Supply Ability : 2000 pairs/month

Delivery Time : 7 days

Packaging Details : DVI Fiber Extender Standard Export Package

Keywords : DVI Fiber Optic Extender

Power Supply : 5V DC USB-C

Video Support : 4Kx2K 30Hz

Baud Rate : 38400 RS232

Transmission Distance : 300m~80km

Operating Temperature : -10 ~ + 50°C

Contact Now

OEM Mini 4K 60HZ DVI Fiber Optic Extender With RS232 Data LC Connector Up To 80KM

DVI Video Fiber Converter Advantages

►Uncompressed transmission, No delay, No losses
►Data rate up to 10.2Gbps
►Transmission distance up to 80km over fiber cable
►Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0
►Auto EDID, match different kind display device
►Hot-Pluggable, EMI/RFI Resistant

Fiber Optic Converter Technical Indexes

Input Signals DVI
Signal Support DVI 1.0 format standard and HDCP compliant
Video Support Up to 720P/960P/1080p@60Hz, 4K*2K@30Hz
Audio Support Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Chroma Subsampling

Max 3840*2160@60Hz (4:2:0)

Max 3840*2160@30Hz (4:4:4, 4:2:2)
EDID

Bi-Directional (Forward + Backward) Transmission:

Support Dynamic EDID, Plug & Play, no need to learn

Single-Directional (Forward) Transmission:

Support EDID learning manually
RS232 3 Pin terminal, Baud rate ≤ 38400
Fiber Connector SFP/LC
Bandwidth 10.2Gbps
Transmission Distance 300m (Over OM3 Fiber)
Up to 80km (Over Single-mode Fiber)
Operating Temperature -10 ~ + 50°C
MTBF 100,000 hours
Dimension (WxDxH) 2.87 x 1.73 x 0.69in (73x44x17mm)
Weight 60g / 0.13 lb

Fiber Optical Transceiver Overview

The LNK-MDR4K Series 4K DVI Fiber Extender are designed to support transmission of uncompressed DVI signal and RS232 signal over optical fiber up to distances of 80km at a resolution of maximum 4K*2K@60Hz, YUV 4:2:0. The Transmitter converts DVI signal to a single 10Gb/s serial data stream for transmission over optical fiber. The Receiver converts the serial data back to an DVI signal.

OEM Mini 4K 60HZ DVI Fiber Optic Extender With RS232 Data LC Connector Up To 80KM

OEM Mini 4K 60HZ DVI Fiber Optic Extender With RS232 Data LC Connector Up To 80KM

Micro DVI over Transmitter Receiver Ordering Information

Model Description
LNK-MDR4K-MM Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK- MDR4K-S20 Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK- MDR4K-S40 Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK- MDR4K-S80 Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
