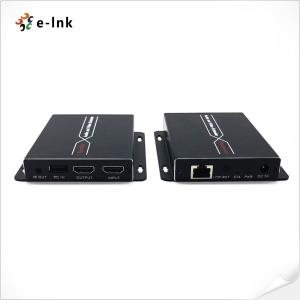

Name: 4K KVM HDMI Over Fiber Optic Extender DC5V CAT6 6A 120 Meter With Loopout
Brand: E-link
Price: 1 USD

Brand Name : E-link

Model Number : LNK-4KE-120KVM

Certification : ISO

Place of Origin : Guangdong

MOQ : 1

Price : please contact seller

Payment Terms : T/T

Supply Ability : 10000

Delivery Time : 5-10 working days

Packaging Details : Standard export package

Video Standards : HDMI1.4; HDCP 1.4

Maximum pixel clock : 225MHz

Maximum data rate : 10.2Gbps

Maximum resolution : 3840*2160@30Hz （backward-compatible）

power adapter : DC5V

Power dissipation : MAX 4W

Contact Now

4K 30HZ HDMI KVM Extender CAT6/6A/7 Network Cable 120 Meter with Loopout

Features

4K KVM HDMI Over Fiber Optic Extender DC5V CAT6 6A 120 Meter With Loopout

Technical Indexes

Parameter		Description
Video	Standards	HDMI1.4; HDCP 1.4
	Maximum pixel clock	225MHz
	Maximum data rate	10.2Gbps
	Maximum resolution	3840*2160@30Hz (backward-compatible)
	Connector	HDMI-A
	Impedance	100Ω
USB	Interface	PC: Standard USB-A K/M: Standard USB-A
USB	USB Signal	HID Signal
UTP	Interface	RJ45 (IEEE - 568b connection)
UTP	Transmission distance	CAT6-120M
Other	Power supply	The power adapter: DC 5V
	Power dissipation	MAX 4W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	828517mm
	The warranty	1 year free warranty

Ordering Information

Part No	Description of product
LNK-4KE-120KVM	4K@30HZ HDMI KVM Extender With Loopout - 395 ft (120m)
