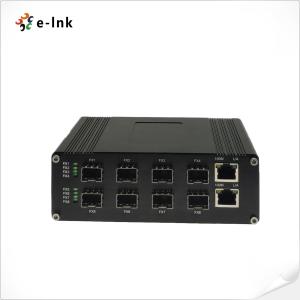

1000Mbps RJ45 FX1 Fiber Optic Switch 2 Port 10/100/1000Base-T Aluminum Case

Brand Name : E-link

Model Number : LNK-IMC802G-SFP

Certification : CE,FCC,RoHs

Place of Origin : China

MOQ : 1 pcs

Price : 220USD(1-5) 200USD(＜100) 195USD(>100)

Payment Terms : Western Union, L/C, T/T, MoneyGram, Paypal

Supply Ability : 2000pcs/per month

Delivery Time : 7 working days

Packaging Details : Ethernet Switch standard export package

Key words : fiber optic to ethernet switch

Ethernet Port : 2 x RJ45

Optical Port : 8 x 1000Base-X SFP

Input Power : 12~57VDC

Fiber : FX1~FX8

Casing : Aluminum Case

Contact Now

Fiber Optic Switch 2-port 10/100/1000Base-T + 8-port 1000BASE-X SFP Ethernet Switch

Advantages

  • 2 10/100/1000Base-TX + 8 1000Base-X SFP
  • 10/100/1000Mbps RJ45 Port
  • Supports 802.3x Flow control
  • 9K Bytes Jumbo Frame
  • Redundant Power Inputs

Technical Indexes
Forward & Filtering Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer Memory: 2.75M bits
Max Packet Length: 9K Bytes Jumbo Frame
Address Table Size: 8K MAC Addresses
Interface
Ethernet Port: 2 x RJ45
Optical Port: 8 x 1000Base-X SFP
Environmental
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Electrical and Mechanical
Input Power: 12~57VDC , Redundant Power (6-pin Terminal Block)
Power Consumption: 12W Max.
Protection:
Power Input Overload: Automatic Resettable
Dimensions (WxDxH): 149 x 110 x 50 mm
Weight: 0.5Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount

Overview

LNK-IMC802G-SFP Series is a unmanaged 8 ports 1000Base-X SFP + 2 ports 10/100/1000Base-T Optical Ethernet Switch. The Switch provides SFP slot to support the use of SFP (Small Form-factor Pluggable) transceiver module. User can choose different types of SFPs (1.25g only). The Switch supports 1 or 2 core Single-mode or Multi-mode fiber.


1000Mbps RJ45 FX1 Fiber Optic Switch 2 Port 10/100/1000Base-T Aluminum Case
