PWR 48VDC POE Fiber Media Converter 1 Port 100Base-FX 90W 10Mbps

Brand Name : E-link

Model Number : LNK-IMC1200P90

Certification : CE/FCC/Rohs

Place of Origin : China

MOQ : 1 piece

Price : Negotiation

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 1000pcs/Month

Delivery Time : 5-8 days

Packaging Details : 1 piece in 1 carton box

Input Power : 48-57VDC, 2-pin terminal block

Output Power : 48VDC

Power Consumption : 185W Max

Dimensions (WxDxH) : 95 x 70 x 30 mm

Mounting Options : DIN-Rail / Wall-mount

Weight : 0.25Kg

Contact Now

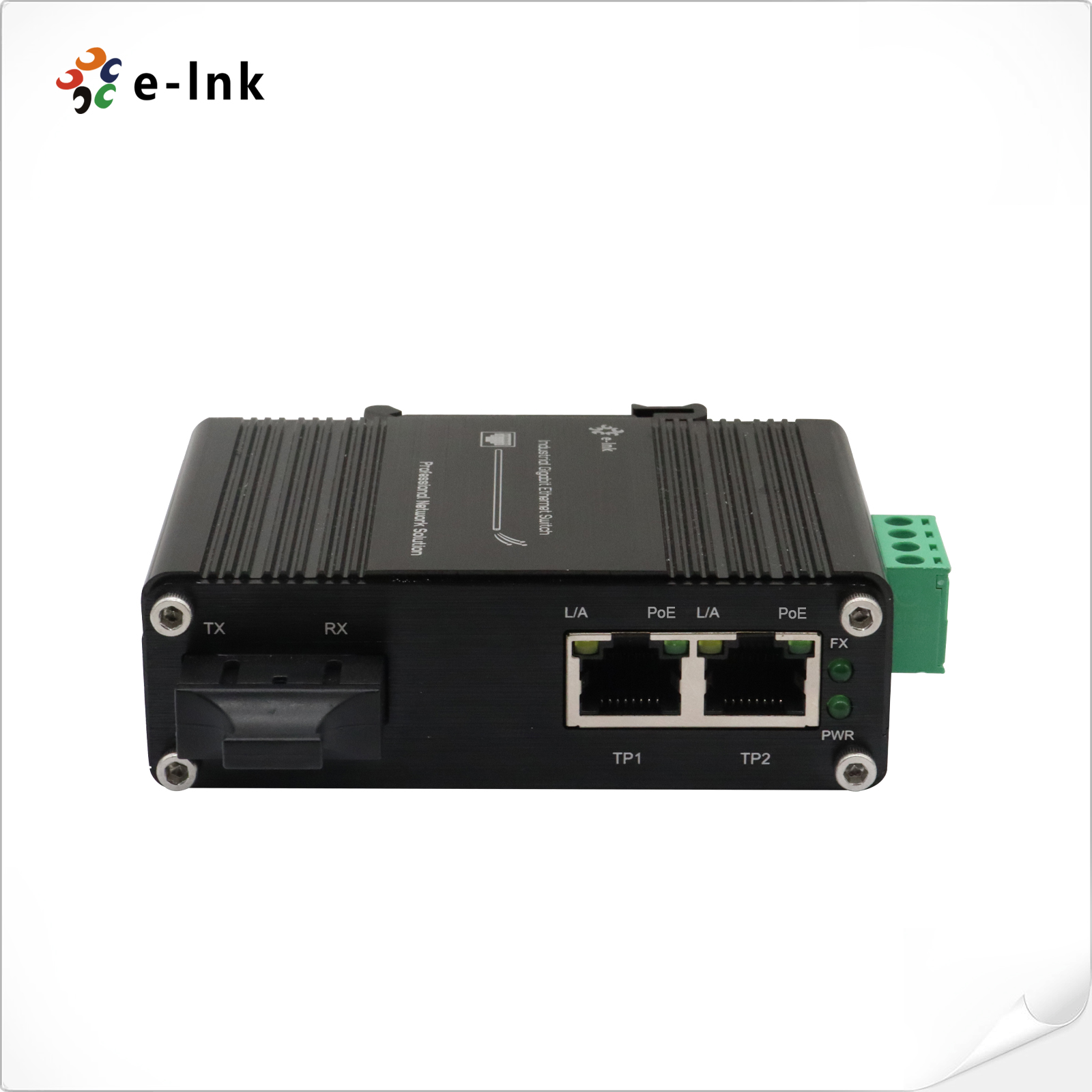

Mini Industrial 1-Port 100Base-FX to 2-Port 10/100Base-T 90W PoE++ Media Converter
PWR 48VDC POE Fiber Media Converter 1 Port 100Base-FX 90W 10Mbps
Overview
The LNK-IMC1200P60 Series provides media conversion between 2-Port 10/100BASE-T and 1-Port 100BASE-FX Fiber. The Ethernet port support 90W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3bt standard. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC1200P60 Series is easy to mount on a DIN rail or in distribution boxes.
Features

  • 2-port 10/100BASE-T RJ45 with auto MDI/MDI-X function
  • 1-Port 100Base-FX SC
  • Supports IEEE802.3af/at PoE (30W) or IEEE802.3bt PoE++(90W)
  • Supports Link Fault Pass Through
  • Supports Full/Half-duplex, Auto-negotiation
  • 9K Bytes Jumbo Frame
  • 48~57VDC Terminal Block Power Input
  • Supports DIN-Rail & Wall-mount installation
  • Environmentally hardened -40°C to 75°C
    (-40°F to 167°F) operating temperature.

Technical Indexes

Ethernet

Standards:

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3x Full duplex and flow control

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

IEEE802.3bt Power over Ethernet

Processing Type:

Store-and-Forward

Forward Filter Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

Packet Buffer Memory:

128K bits

Max Packet Length:

1522 Bytes

Address Table Size

1K MAC Addresses

Interface

Connector:

2 x RJ45

Optical Port:

1 x SC 100Base-FX

Electrical and Mechanical

Input Power:

48~57VDC, 2-pin terminal block

Output Power

48VDC

Power Consumption:

185W Max.

LED Indicators:

PWR:

Power Status

L/A:

Data LINK Status

POE:

PoE Status

100M/1000M:

Fiber LINK Status

Dimensions (WxDxH):

95 x 70 x 30 mm

Weight:

0.25Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail / Wall-mount

Environmental

Operating Temperature:

-40°C to 75°C (-40°F to 167°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Regulatory Approvals

ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)


Order Information

ModelDescription
LNK-IMC1200P90Mini Industrial 90W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Multimode, 1310nm, 2km
LNK-IMC1200P90-20Mini Industrial 90W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC1200P90S-20Mini Industrial 90W PoE++ Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3bt PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options► 240W/5A 48VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
