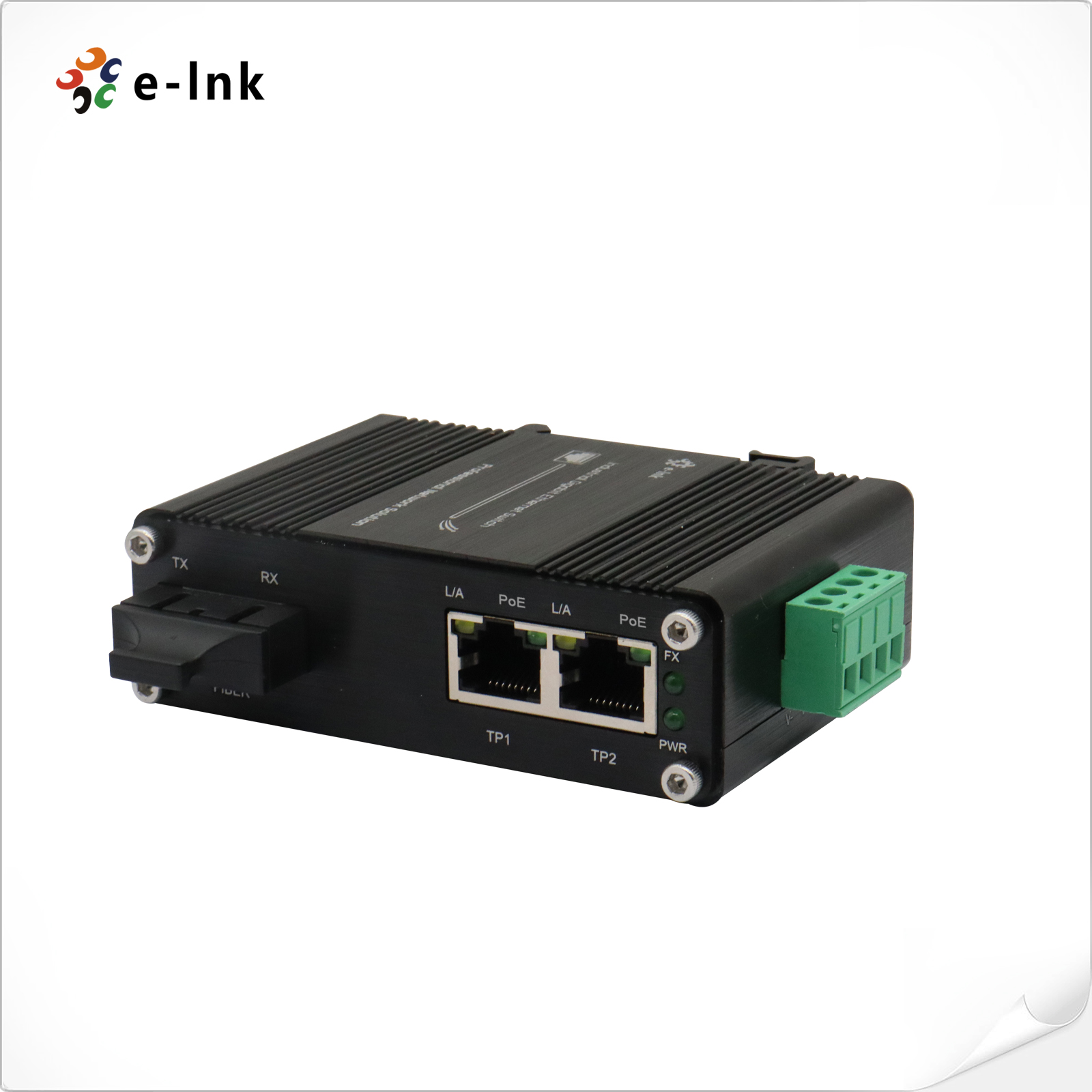

Auto MDI 30W Fiber Optical Media Converter 1 Port 100Base-FX Aluminum Case

Name: Auto MDI 30W Fiber Optical Media Converter 1 Port 100BaseFX Aluminum Case
Brand: E-link
Price: 1 USD

China Auto MDI 30W Fiber Optical Media Converter 1 Port 100Base-FX Aluminum Case factory

Brand Name : E-link

Model Number : LNK-IMC1200P

Certification : CE/FCC/Rohs

Place of Origin : China

MOQ : 1 piece

Price : Negotiation

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 1000pcs/Month

Delivery Time : 5-8 days

Packaging Details : 1 piece in 1 carton box

Input Power : 12-48VDC, 2-pin terminal block

Output Power : 48VDC

Power Consumption : 65W Max

Dimensions (WxDxH) : 95 x 70 x 30 mm

Mounting Options : DIN-Rail / Wall-mount

Weight : 0.25Kg

Contact Now

12-48VDC Input Mini Industrial 1-Port 100Base-FX to 2-Port 10/100Base-T 30W PoE+ Media Converter

Model: LNK-IMC1200P

Auto MDI 30W Fiber Optical Media Converter 1 Port 100Base-FX Aluminum Case

Overview

The LNK-IMC1200P Series provides media conversion between 2-Port 10/100BASE-T and 1-Port 100BASE-FX Fiber. The Ethernet port support 30W high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It’s a hardened product with wide operating temperature range from -40°C to 75°C, and ruggedized aluminum housing. The Ethernet port supports both half-duplex and full-duplex mode. The rugged hardware design ensures that your Ethernet equipment can withstand demanding industrial conditions. The LNK-IMC1200P Series is easy to mount on a DIN rail or in distribution boxes.

Features

2-port 10/100BASE-T RJ45 with auto MDI/MDI-X function
1-Port 100Base-FX SC
Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)
Supports Link Fault Pass Through
Supports Full/Half-duplex, Auto-negotiation
9K Bytes Jumbo Frame
12~48VDC Terminal Block Power Input
Supports DIN-Rail & Wall-mount installation
Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3x Full duplex and flow control
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
Forward Filter Rate:	148,800pps (100Mbps)
Packet Buffer Memory:	128K bits
Max Packet Length:	1522 Bytes
Address Table Size	1K MAC Addresses
Interface
Connector:	2 x RJ45
Optical Port:	1 x SC 100Base-FX
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Output Power	48VDC
Power Consumption:	65W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
POE:	PoE Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs

Order Information

Model	Description
LNK-IMC1200P	Mini Industrial PoE Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km
LNK-IMC1200P-20	Mini Industrial PoE Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC1200PS-20	Mini Industrial PoE Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
