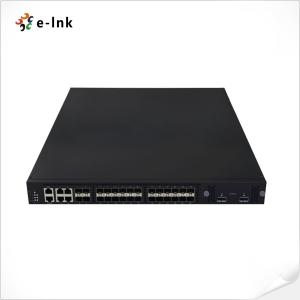

Model: LNK-FS2402HC
Overview
LNK-FS2402 Series is a 10 Gigabit data center switch. Providing 650Gbps switching capacity, the highest performance (1U TOR) in the industry. With 483.6Mpps forwarding performance, L2/ L3 full wire-speed forwarding. With the modular design, it provides24*10G SFP+ optical ports, 2*40G QSFP+ port, 1*Console port, 4*10/100/1000M RJ45/SFP Combo port, 1*OOB port, which offers enough bandwidth for data aggregation and data exchange. And in order to flexibly respond to the network requirements, users can select appropriate, 10G ports according to their needs. LNKFS2402 comes with high bandwidth and low latency, pipe network, this switch located in density of the next generation of data center and cloud computing network access, can also be used for large Internet cafes, the core of enterprise network, metropolitan area network, or gathering.
Features
★ ★High density 10G access, performance is remarkable
(1) with 650Gbpsbackplane capacity, the industry the highest performance (1U TOR);
(2) hardware routing, the packet forwarding rate of the wire speed layer 3 switching has reached483.6Mpps, L2 / L3 full speed forwarding;
(3) 24 10Gb optical ports, 2 40G QSFP+ port, the highest density (1U TOR), meet the demand of high-density 10G server access.
★ ★ Convenient Maintenance
(1) able to be managed via Web, SNMP,telnet, etc
(2) support XModem protocol, use TFTP/ZMODEM for software upgrading and BootRom upgrading
(3) support SFP+, simultaneously downward compatible XFP
(4) support flexible port configuration
★ ★ Powerful Flow and Broadcast Management
(1)automatically detect and control broadcast storm, support IGMP packets detection, effectively limit the flooding of broadcast packets.
(2)support Ethernet interface taking 1M as the step length for rate limiting
★ ★ Safe and Reliable
(1)provide DOS, DDOS, spoofing and virus defense
(2)support IEEE802.1x, provide port-based user authentication, network shield, safety control, and policy control technology
(3)restrict the maximum number of hosts connected with the port, multi-binding Ethernet interface , increasing bandwidth and system redundancy
Technical Indexes
